SC100-E0L-GC2-B0000

SC100-E0L-GC2-B0000

Home IoT Protocol Converters SC100 Series Serial Device Server SC100-E0L-GC2-B0000

SC100-E0L-GC2-B0000

SC100-E0L-GC2-B0000

SC100-E0L-GC2-B0000

SC100-E0L-GC2-B0000

IoT Protocol Converters

SC100-E0L-GC2-B0000

IoT Protocol Converters

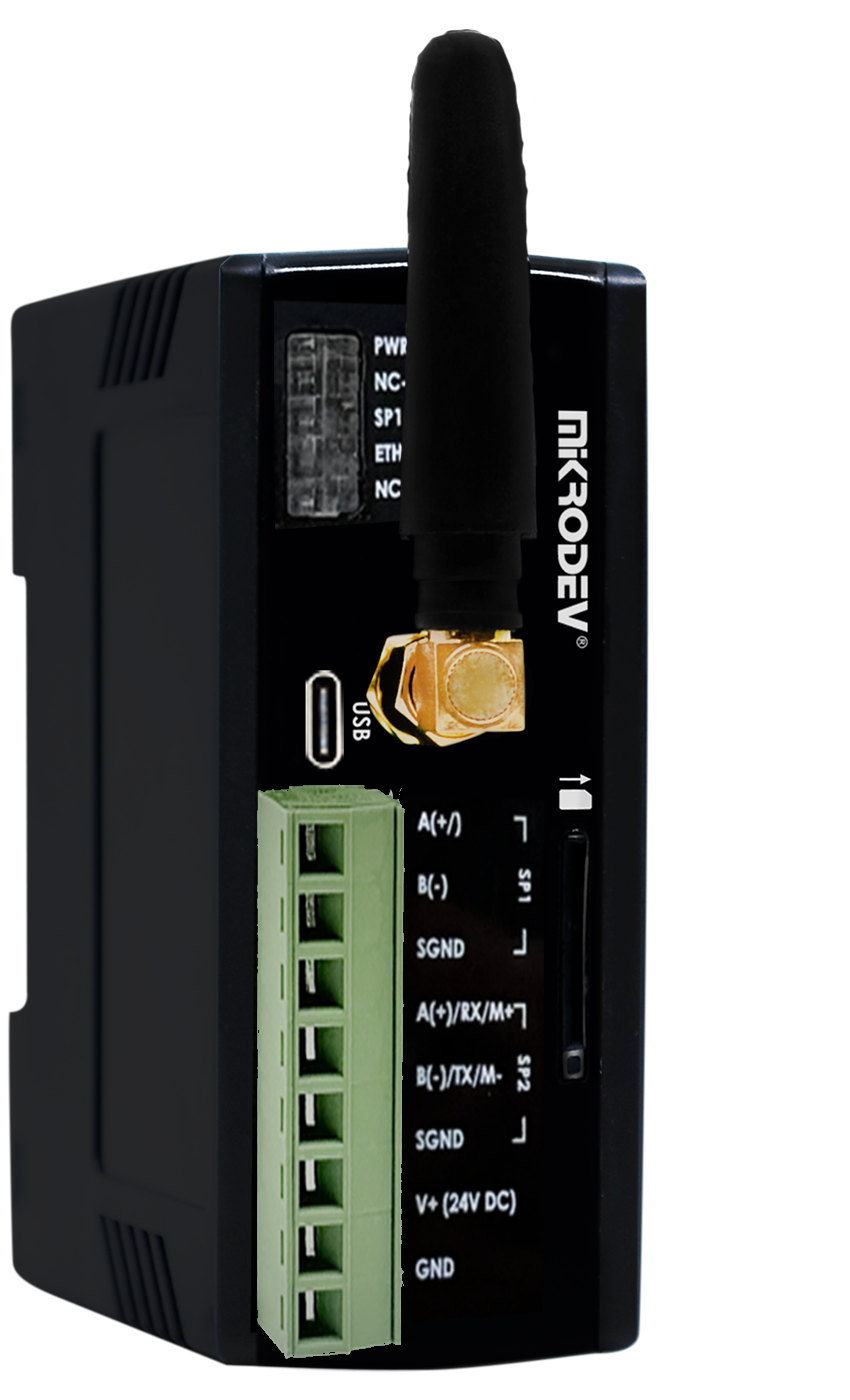

SC100-E0L-GC2-B0000(TRANSPARENT COMMUNICATION, 1 GSM/LTE, 1 RS232, 1 RS485)

SC100 provides two-way transparent access to devices with serial communication channels over the internet.

GET MORE INFORMATION GENERATE PDF

Features

Applications

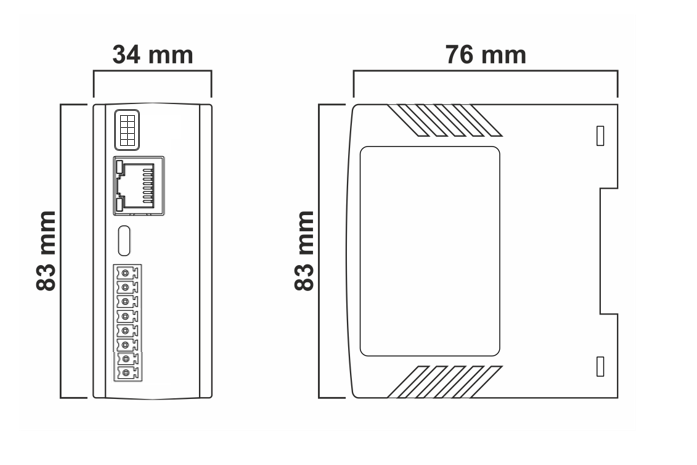

Drawing

Downloads

FILTRE

Select All

9 features selected

Product Features

Programming

LED Signals

Environmental Conditions

Electrical Wiring

Warranty

Communication Port

Board Type

Options

Close All

Product Features

Transparent Communication

Yes

User-friendly Software for Configuring Gateway

Yes

Programming with USB Cable

Yes

Upload Program over TCP/IP

Yes

Data Transmission Between Networks

Yes

Multiple Connectivity

Yes

Auto-Detect Socket Disconnection and Auto-Reconnection

Yes

Stable Communication with Dynamic Structure

Yes

Remote Firmware Upgrade

Yes

View Status of Device Over Web-Interface

Yes

Programming

Programming Editor

Assistant Software

Device Search over Network

Yes

Offline Configuration

Yes

Import/Export Configuration

Yes

USB

1 Port, Mini USB Type B

LED Signals

Power

1 LED Blue

Running Status

1 LED Blue

Error

1 LED Blue

Environmental Conditions

Operating Temperature

-25 / +75 C

Storing Temperature

-40 / +80 C

Humidity

5..95 RH

Operating Altitude

0..2000 m

Protection Standard

IP20

Electrical Wiring

Serial Port

Demountable Terminal Block with Screw, (pitch 3.81 mm)

Power Supply Input

Demountable Terminal Block with Screw, (pitch 3.81 mm)

Warranty

Warranty Duration

24 Months

Certificates

CE

Communication Port

Integrated GSM

1 Port, 4G-LTE

Board Type

RS232

1 Port, ESD Protection

RS485

1 Port, ESD Protection

RS232 ESD Protection

8 kV Direct, 15 kV Air Discharge

RS485 ESD Protection

18 kV Direct, 25 kV Air Discharge

Options

Power Supply

24 V DC

Barcode Scanner System

Machine Automation

Fire Alarm Systems

Meter Reading Systems

Energy Tracking Systems

SC100-E0L-GC2-B0000

Documents

Hardware Manual

542.40 KB APPLICATION/PDF

Software Manual

757.56 KB APPLICATION/PDF

Ordering Information

APPLICATION/PDF

Software

Assistant Software

APPLICATION/EXE
